We are China manufacturer of 2–6 axle side tipper semi trailers, factory-direct price, 25–60 tons available, and you can also customize dimensions, suspension, and hydraulic systems according to mining, construction, bulk transport and other specific applications

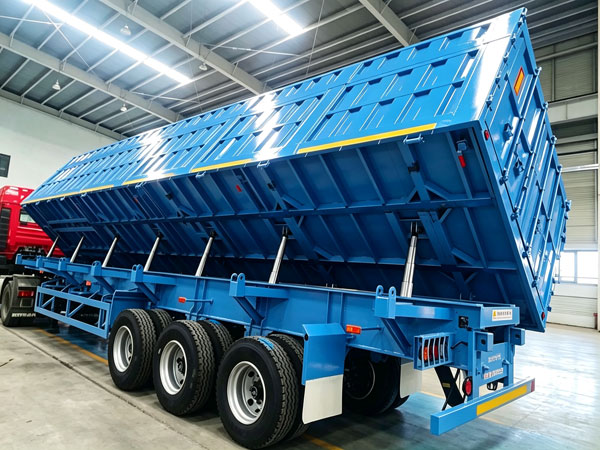

A side tipper semi trailer is a dump semi trailer that uses a hydraulic lifting system to tilt the trailer body sideways and discharge bulk materials from the side.
The main difference between a side tipper and a rear tipper is the direction of unloading.
A side tipper tilts the body to the left or right and discharges cargo laterally, while a rear tipper raises the front of the body and unloads through the rear.
So side tippers require sufficient lateral clearance and stable ground for side unloading, while rear tippers require clear space behind the trailer and enough overhead clearance for the raised body.
Our specifications below represent typical LionKar side tipper semi trailer configurations. The suitable configuration depends on cargo density, payload requirements, road conditions, unloading environment and local regulations.
| Item | Available Specification |
| Payload | 25–60 Tons |
| Axles | 2 Axles / 3 Axles / 4 Axles / 5 Axles / 6 Axles |
| Trailer Length | 10–15 m / Customized |
| Body Volume | 20–45 m³ / Customized |
| Tipping Type | Side Tipping |
| Suspension | Mechanical / Air Suspension Optional |
| Hydraulic System | Multi-cylinder Side Lifting |
| Main Cargo | Coal, Ore, Sand, Gravel, Stone |
| Tractor Match | HOWO / SHACMAN / SINOTRUK / Volvo / Scania |
| Customization | Size, Axle, Capacity, Steel Thickness, Suspension |
Browse the videos below to explore trailer design, structural details, equipment configuration, product features, and general trailer information related to this model.
Lionkar side tipper semi trailers are built with a quality hydraulic system, well desiged anti-rollover structure, strong body frame and suspension, which are properly matched to your payload, cargo and road conditions.
For rough roads and repeated heavy loads, frame strength matters. Lionkar uses a well structured and selected main beam, steel thickness, axle and suspension, according to cargo weight, material wear and road conditions.
The Lionkar side tipper semi trailer tipping system provides enough lifting force, keeping the trailer stable throughout loading & unloading. Cylinder quantity, support points and safety structure also increase with trailer size and payload.
Most side tipper semi trailers operate at 25–60 tons. Payloads above 60 tons usually require a dedicated heavy-duty design, regulation limitation .
Higher payload increases stress on the frame, axles, suspension, tires, brakes, hydraulics, and tipping supports, raising the risk of cracking, component failure, longer braking distance, hydraulic overload, and rollover.
For higher payloads, the trailer typically needs a reinforced frame and subframe, stronger axles and suspension, upgraded tires and brakes, more tipping support, and a hydraulic system matched to the load. A 4-axle layout may also improve load distribution.
Note: Structural capacity is not the same as legal road payload; local axle-load and gross-weight limits still apply.
In LionKar factory, we manufacture side tipper semi Trailer units for customers requiring practical cargo transport solutions with open platform design and side tipper structure. Our production covers trailer fabrication, structural configuration, technical specifications, component selection, and standard manufacturing processes for different cargo transport requirements.

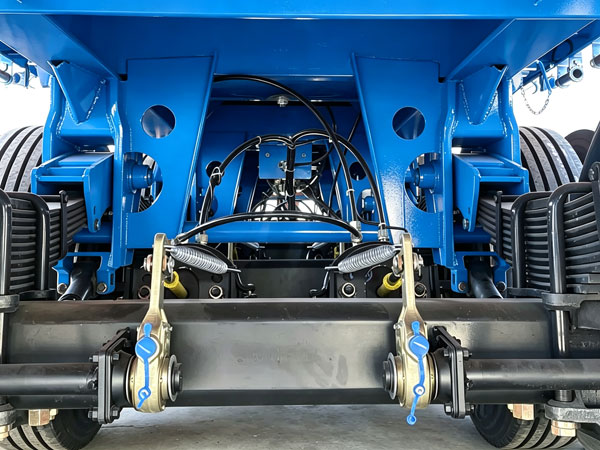

As a professional China semi trailer manufacturer, our factory photos provide a closer look at the side tipper semi trailer structure, including the main frame, cargo platform, fence panels, axle assembly, suspension system, landing gear, king pin, wheel components, surface finishing, and completed trailer details for overall product reference.
After delivery, side tipper semi trailer service may include follow-up support related to spare parts supply, component replacement, maintenance requirements, and technical information for standard trailer systems. This commonly involves axle assemblies, suspension parts, landing gear, king pin components, lighting systems, and tipping structure accessories.
Side tipper semi trailers are widely used for heavy-duty bulk transport where fast lateral unloading is required, especially in mining, quarrying, construction, and commercial haulage operations.
A mining side tipper trailer, ore tipper trailer, or coal side tipper is used for mines, mineral processing sites, and haul roads, transporting iron ore, copper ore, coal, mineral ore, tailings, mining waste, and other dense bulk materials.
A quarry side tipper, aggregate tipper trailer, stone tipper trailer, or gravel tipper trailer is used for quarries, crushers, stockpiles, and plants, transporting crushed stone, gravel, rock, sand, aggregate, and other abrasive quarry materials.
A construction side tipper trailer, earthwork tipper trailer, or sand and gravel tipper trailer is used for construction sites, road projects, infrastructure works, and earthmoving operations, transporting sand, gravel, crushed stone, soil, clay, road base, excavated material, construction debris, and other building materials.
A bulk haulage side tipper, bulk material tipper trailer, or heavy-duty side tipper is used for long-distance and contract transport between mines, plants, ports, storage yards, and project sites, carrying coal, ore, aggregates, grain, fertilizer, sand, gravel, and other loose bulk cargo.
Tell us about your cargo types, operating conditions, and preferred specifications. We’ll work with you to develop a side tipper semi trailer that matches your transport requirements.
What customers say about their experience working with us on Side Tipper Semi Trailer projects, from product quality and manufacturing details to communication, order process, and overall cooperation throughout the purchasing process.
We believe that a transparent production process is the key to winning customer trust. LionKar sincerely invites you to visit our factory and experience the production environment and quality of the finished products of our semi-trailers.
Sinotruk HOWO TX
Shacman F3000
Shacman X5000
Sinotruk HOWO T7H
Before shipment, each side tipper semi trailer is inspected for hydraulic operation, frame and weld quality, brakes, axles, suspension, tires, electrical systems, and key dimensions. Trailers can be shipped to Africa by Ro-Ro, bulk vessel, container, or flat rack, with anti-rust protection and secure fastening. Typical transit times are about 25–35 days to East Africa, 25–40 days to Southern Africa, and 35–50 days to West Africa, depending on port and vessel schedule.
The following questions cover common topics related to Side Tipper Semi Trailer structure, specifications, configuration options, and general product selection when comparing trailer requirements.
