Skeletal trailers are commonly described by the container sizes they are designed to carry, such as 20 ft, 40 ft, or 45 ft configurations. However, these designations do not correspond to one universal set of trailer dimensions.
The final skeletal trailer dimensions depend mainly on:
- Container size and type, which determine the required twist-lock positions and support layout.
- Chassis design, which affects the overall length, chassis structure, and operating dimensions.
Container height and weight may also affect the final configuration, including the loaded vehicle height, structural requirements, and load distribution.
Together, these factors determine the final trailer dimensions and the container combinations the skeletal trailer can safely accommodate.
1. Typical Skeletal Trailer Dimensions
The following figures are common reference ranges rather than universal manufacturing standards.
| Trailer Configuration | Typical Overall Length | Supported Container Configuration | Common Axle Configuration |
|---|---|---|---|
| Dedicated 20 ft chassis | Approx. 7,200–7,500 mm | 1 × 20 ft container | Usually 2 axles; 3 axles available for certain applications |
| Dedicated 40 ft chassis | Approx. 12,200–12,800 mm | 1 × 40 ft container | Typically 3 axles |
| Dedicated 45 ft chassis | Approx. 13,500–14,000 mm | 1 × 45 ft container | Typically 3 axles |
| Adjustable or extendable chassis | Varies by operating position | Multiple specified container configurations | Typically 3 axles |
These dimensions are general references only. Final trailer dimensions depend on the required container configurations, twist-lock and support positions, and the selected chassis design.

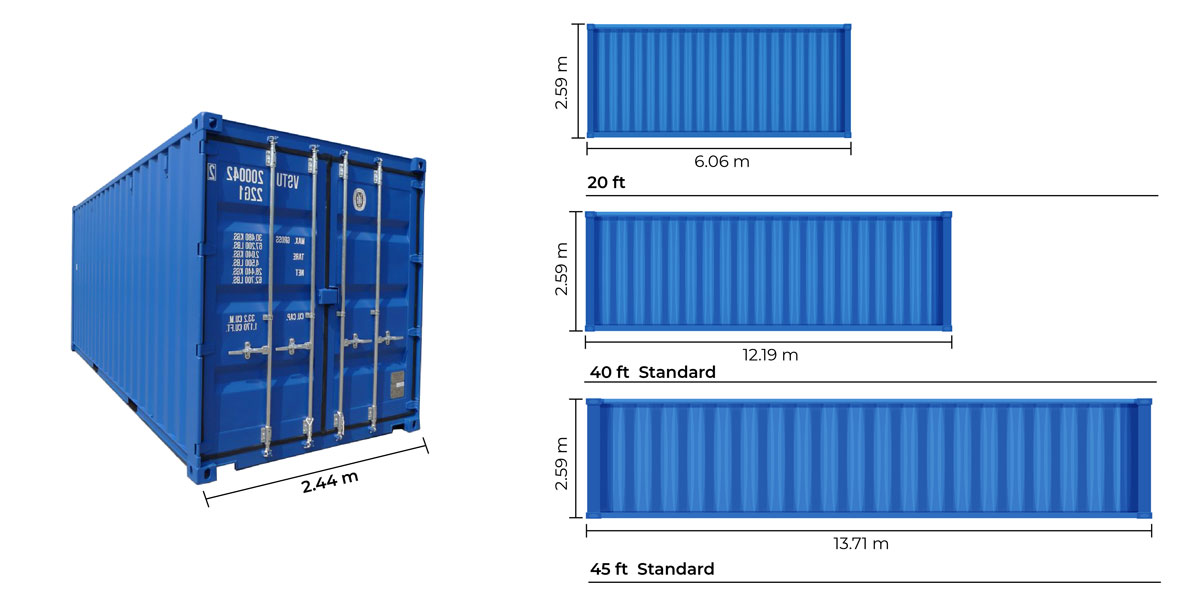

2. ISO Container Dimensions
Do not select a skeletal trailer solely by its nominal 20 ft, 40 ft, or 45 ft description. First define the exact container configurations the trailer needs to carry.
ISO Container Dimensions for Skeletal Trailer Selection
| Container Type | External Length | External Width | External Height | Internal Length (Approx.) | Internal Width (Approx.) | Internal Height (Approx.) |
|---|---|---|---|---|---|---|
| 20 ft Standard / 20 GP | 20′ / 6,058 mm | 8′ / 2,438 mm | 8’6″ / 2,591 mm | 19’4⅛” / 5,898 mm | 7’8½” / 2,350 mm | 7’10” / 2,390 mm |
| 40 ft Standard / 40 GP | 40′ / 12,192 mm | 8′ / 2,438 mm | 8’6″ / 2,591 mm | 39’5½” / 12,029 mm | 7’8½” / 2,350 mm | 7’10” / 2,390 mm |
| 40 ft High Cube / 40 HC | 40′ / 12,192 mm | 8′ / 2,438 mm | 9’6″ / 2,896 mm | 39’5½” / 12,029 mm | 7’8½” / 2,350 mm | 8’9″ / 2,667 mm |
| 45 ft High Cube / 45 HC | 45′ / 13,716 mm | 8′ / 2,438 mm | 9’6″ / 2,896 mm | 44’5⅝” / 13,556 mm | 7’8½” / 2,350 mm | 8’9″ / 2,667 mm |
External dimensions are based on common ISO 668:2020 Series 1 freight containers — Classification, dimensions and ratings. Internal dimensions may vary slightly by container manufacturer and model.
3. Why Can Two 40 ft Skeletal Trailers Have Different Overall Lengths?
Two skeletal trailers designed for the same container configuration do not necessarily have identical overall dimensions.
The container corner castings determine the required twist-lock positions and spacing, but they do not determine the complete trailer dimensions. The final overall length also depends on how these positions are arranged in relation to the kingpin, axle group, front overhang, and rear structure.
Even with similar lock layouts and the same general chassis type, trailers from different manufacturers may have slightly different overall lengths. These differences usually result from the kingpin position, front and rear overhangs, bumper or underrun-protection design, and axle layout rather than from the container lock spacing itself.
Different chassis designs can produce more significant differences in overall or operating dimensions. The main effects are as follows:
- Fixed chassis: The overall length remains constant. For a 40 ft chassis, typical overall lengths are approximately 12.3–12.5 m, with variations mainly resulting from the kingpin position, front and rear overhangs, bumper design, and axle layout.
- Sliding or adjustable chassis: The dimensional effect depends on which part of the chassis is adjustable. A sliding axle group may change load distribution without changing the overall length, while an adjustable frame section may change the operating length or container position.
- Extendable chassis: This produces the clearest change in overall length. Depending on the design, a typical 40/45 ft chassis may extend by approximately 1.5 m between its 40 ft and 45 ft operating positions.
- Gooseneck chassis: This mainly changes the front chassis profile and loaded vehicle height. With the same container lock positions, its effect on overall length is usually limited.
- Multipurpose lock layout: Additional locks and support positions increase container compatibility but do not normally change the overall length unless combined with a sliding or extendable chassis.
These figures are typical references only. The exact overall length and operating dimensions should be confirmed from the manufacturer’s technical drawing.
4. Quick skeletal Trailer Selection Guide
| Main Transport Requirement | Usually Suitable Option | Key Point to Confirm |
|---|---|---|
| Mainly one 20 ft container | Dedicated 20 ft chassis or a multipurpose chassis with a specified 20 ft position | Container position and axle-load distribution, especially for heavy 20 ft containers |
| Mainly one 40 ft container | Dedicated fixed 40 ft chassis | Compatibility with the required 40 ft container type, including gooseneck tunnel clearance where applicable |
| Two 20 ft containers | Chassis designed for a 2 × 20 ft configuration | Intermediate locks, structural support, and axle-load distribution |
| Either one 40 ft container or two 20 ft containers | Multipurpose chassis designed for both configurations | Both container configurations shown on the technical drawing |
| Both 40 ft and 45 ft containers | Extendable or telescopic chassis designed for both lengths | Overall length, rear overhang, and legal compliance in each operating position |
| Tunnel containers or operations with strict loaded-height limits | Compatible gooseneck chassis | Container tunnel dimensions, fifth-wheel height, and total loaded vehicle height |
A dedicated chassis may be the simpler and lighter choice when container requirements remain stable. An adjustable or multipurpose chassis is more suitable when one trailer must handle several specified container configurations or operating positions.
The final choice should not be based on the nominal trailer description alone. The container configurations, operating positions, axle-load distribution, and legal dimensions should all be confirmed on the manufacturer’s technical drawing before ordering.
5. Conclusion
Select a skeletal trailer according to the container configurations it needs to support, rather than by nominal trailer length alone.
Container sizes, types, loading combinations, and expected weights influence the required twist-lock layout, chassis design, axle arrangement, and final dimensions. Two trailers described as 40 ft skeletal trailers may therefore have different overall dimensions and operating capabilities.
For this reason, the final dimensions should always be evaluated together with the supported container configurations, chassis layout, and operating requirements.
