In addition to transporting volatile fuels such as gasoline and diesel, it is also well-suited for handling highly volatile organic solvents including benzene, toluene, methanol, and ethanol. With its environmental protection, safety and high efficiency, it covers many high-demand industries.
* Price Reference Only on Parameters. Contact us for Customizing, etc.

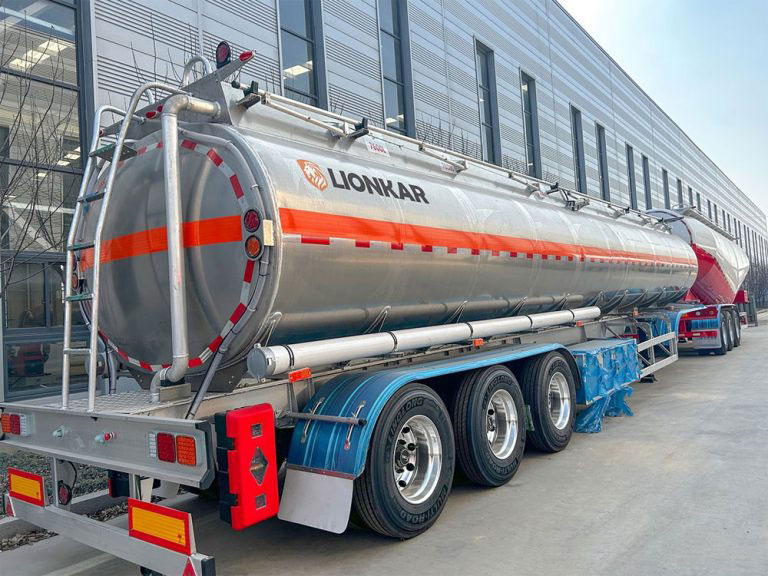

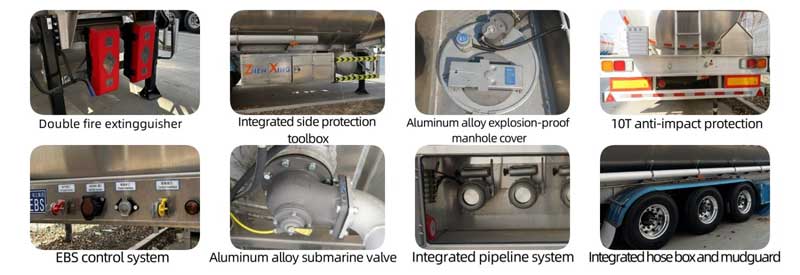

Aluminum alloy oil tank trailer with oil and gas recovery device is a special vehicle designed for the transportation of fuel (such as gasoline, diesel, etc.). Through the integrated oil and gas recovery system, the oil and gas are circulated into the oil tank by absorption and adsorption during the loading and unloading process, and converted into liquid after cooling, to achieve the purpose of recycling, energy saving, and environmental protection. It is mainly composed of: oil and gas recovery valve, oil and gas recovery pipeline, oil and gas recovery joint, and plug cover.
Compared to steel tank bodies, aluminum alloy tank bodies offer a significant weight reduction of 30%~40%. Taking a 45,000L tanker as an example, an aluminum alloy tank weighs only about 6 metric tons, while a steel tank of the same capacity can weigh up to 9 metric tons. This advantage increases effective payload capacity by over 30%, significantly improving transport efficiency and reducing fuel consumption.
Additionally, the natural oxide layer on aluminum alloy surfaces provides excellent corrosion resistance, making it particularly suitable for transporting sulfur-containing fuels, chemical media, and other corrosive substances. Over long-term use, aluminum alloy tanks can achieve a service life of over 15 years without frequent anti-corrosion treatments. Annual maintenance costs are reduced by more than 50% compared to steel tanks, substantially lowering total lifecycle operating costs.
| Specification | Value | Specification | Value |
| length*width*height | 12000*2500*3400mm | Axles | 3 axIes |
| Tank Capacity | 45,000 liters (L) | Suspension System | mechanical/air suspension optional |
| Tank Material | Aluminum alloy; Tank thickness: 5 mm; | Suspension size | 90 (width) mm*13 (thickness) mm*10 (layer) |
| Braking system | Wabco | Safety devices | LED Light |
We have established trade relations with many countries in the world. Our professional vehicles have been successfully sold to Southeast Asia, the Middle East, Africa, South America and other regions, and our experienced team can choose the most suitable transportation methods for different customers, including container, ro-ro and bulk transportation, balancing safety and economic costs.
Custom aluminum tanker trailer production and factory-direct pricing help reduce sourcing costs and keep your project on budget
