A custom-built 40 feet low bed trailer gives you the low deck height, heavy-duty frame and loading flexibility for construction machinery, mining equipment, steel cargo and oversized industrial loads.
A 40ft low bed trailer is a specialized semi trailer designed for transporting heavy equipment and oversized cargo. Its low loading deck helps reduce overall transport height, making it suitable for cargo that may exceed road height restrictions when carried on standard flatbed trailers. It is widely used in construction, mining, industrial transport, and heavy haul applications.
4 line 8 axle Low Bed Trailer
60 Tons Semi Lowbed Trailer

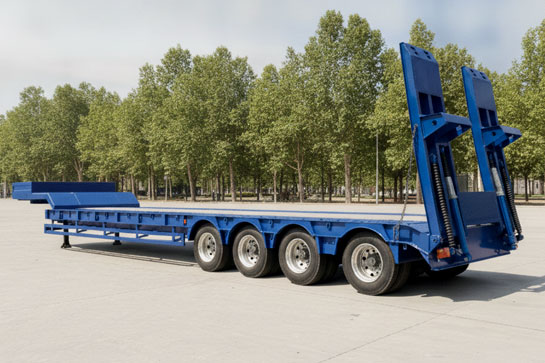

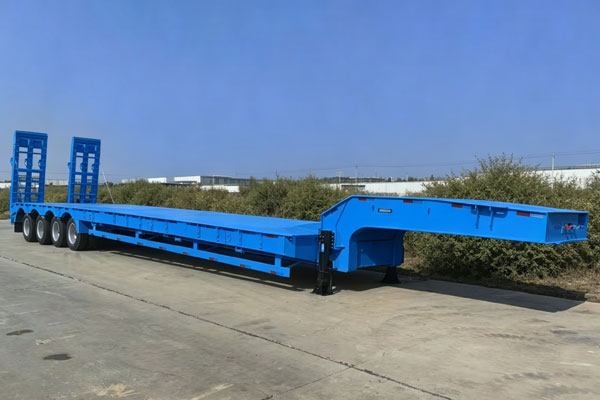

40 Feet Low Bed Trailer For Sale
80 Ton Low Bed Trailer For Sale
The final specifications of a 40ft low bed trailer are determined by axle configuration, steel structure, platform design, ramp type, suspension system, and required load capacity. Below are the main configuration options available based on different transport requirements.
| Item | Specification Options |
|---|---|
| Product Name | 40 Feet Low Bed Trailer |
| Axle Options | 2 axle / 3 axle / 4 axle |
| Loading Capacity | 32-40T / 60T / 80T / 100T |
| Deck Height | 1000mm |
| Tire Size | 12R22.5 |
| Lighting Voltage | 24V |
| Kingpin | Bolted kingpin, 3.5 inch / 90mm |
| Platform | 5mm checkered plate |
| Main Material | NM450 / T700 |
| Ramp Type | Spring ramp / hydraulic ramp |
| Gooseneck Type | Fixed gooseneck / folding gooseneck / detachable gooseneck |
| Suspension | Heavy-Duty Mechanical Suspension / leaf spring suspension |
| Surface Protection | Anti-rust painting and export protection available |
| Customization | Axle, payload, width, ramp, suspension, platform and color can be customized |
Note: Tare weight, GVW and axle load vary according to the final design. Please send your cargo weight, cargo size and tractor head information before production.
We filmed several videos at our factory to show the low bed trailer. The footage gives a practical view of the trailer’s structure.
This 40ft low bed trailer is engineered for stable and efficient heavy equipment transport. With a 1000mm low deck height, multiple ramp options, and reinforced platform configurations, it is suited for transporting excavators, bulldozers, loaders, and other oversized equipment.
The 1000mm deck height gives this 40ft low bed trailer a lower center of gravity when transporting tall and heavy machinery. Lower deck height improves transport stability, reduces overall transport height, and better accommodates construction, mining, and infrastructure equipment.
The platform of this 40ft low bed trailer can be built with 5mm checkered steel plate, or widened deck configurations.
Platform design is typically determined by equipment weight, track width, cargo dimensions, and project-specific transport requirements.
Spring ramps, mechanical ramps, and hydraulic ramps can be configured for different loading requirements.
Hydraulic ramps are typically preferred for frequent loading cycles, while spring ramps remain a durable option for standard heavy equipment transport.
This 40ft low bed trailer can be configured with fixed, folding, or detachable gooseneck designs.
Gooseneck configuration is generally selected based on tractor unit compatibility, loading method, and transport requirements for heavy equipment applications.
A 40 feet low bed trailer is not just a long platform. Its value comes from the deck height, frame strength, axle layout, ramp design and cargo securing system working together for heavy equipment transport.
1000mm deck height for low loading height and transport of tall or oversized equipment.
NM450, and T700 steel options available for different payload capacities and structural requirements.

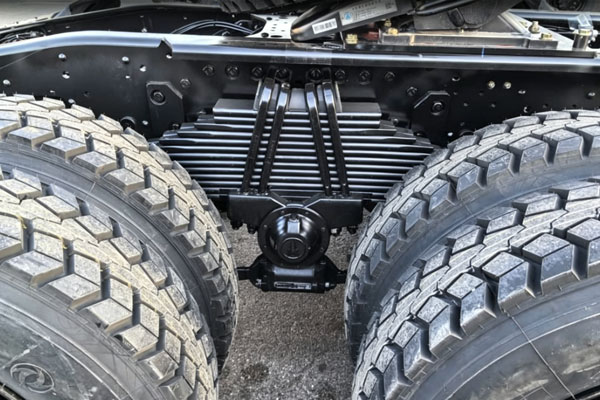

Available in 2, 3, and 4 axle configurations for different payload capacities and road conditions.
5mm checkered steel plate deck designed for heavy equipment loading and cargo stability.
24V electrical system with standard trailer lighting connection for road transport operation.
3.5-inch bolted kingpin with standard tractor connection and replaceable mounting design.
Technical records, component specifications, and maintenance reference data remain important throughout the operating life of a low bed trailer. Spare parts planning and configuration documentation are typically prepared together with production requirements.
Production of a 40 feet low bed trailer involves steel cutting, chassis welding, structural assembly, suspension installation, ramp fitting, surface coating, and final production inspection before delivery.
The 40 feet low bed trailer combines a fixed 40ft loading platform with low deck structure for transport applications involving heavy machinery, oversized cargo, and project equipment. Depending on payload requirements, the trailer can be engineered with different axle configurations, structural reinforcement levels, and loading arrangements.
A 40 feet low bed trailer is commonly specified for transporting excavators, bulldozers, and tracked construction equipment that require low loading height and stable deck support during road transport. Trailer design is typically based on machine weight, track width, transport height, and loading frequency.
For mining operations and heavy construction projects, the 40ft low bed trailer can be configured with reinforced chassis structure, multi-axle layout, and mechanical suspension systems for demanding transport conditions. This type of configuration is widely used for loaders, drilling equipment, and large off-road machinery.
The fixed 40ft platform also makes the trailer suitable for transporting steel structures, large pipes, industrial tanks, generators, and project equipment requiring stable deck support and flexible cargo securing arrangements. Platform width and structural design can be adapted for oversized industrial cargo applications.
A 40 feet low bed trailer is often used in port handling and inland logistics where machinery transport and project cargo handling require more flexible loading arrangements. Steel deck design, container locking options, and custom securing points can be integrated for mixed transport applications.
A 40 feet low bed trailer can be engineered according to cargo dimensions, payload capacity, and road operating conditions for different transport applications.
Feedback from buyers, fleet operators, and trailer dealers involved in 40 feet low bed trailer purchasing, covering different markets, transport requirements, and commercial trailer applications.
Factory visits connected with 40 feet low bed trailer projects, including production discussions, trailer configuration planning, and on-site communication during the manufacturing process.
Export preparation process for 40 feet low bed trailer orders, including trailer surface protection, loading arrangements, packaging preparation, and shipment handling before international delivery.
We have listed some questions, which focus on real 40 feet low bed trailer purchase decisions.
A 40 feet low bed trailer is designed for transporting heavy equipment and oversized cargo that require a lower loading platform than standard flatbed trailers. Typical transport applications include excavators, bulldozers, wheel loaders, mining machinery, steel structures, industrial equipment, and project cargo with height restrictions during road transport.
Payload capacity depends entirely on structural design and intended transport application. A 40 feet low bed trailer can be engineered for 40 ton, 60 ton, 80 ton, or 100 ton payload capacities, with final specification determined by axle configuration, main beam structure, steel grade, suspension system, ramp design, and local axle load regulations.
A 3 axle configuration is commonly specified for medium-duty heavy equipment transport where payload and operating cost require practical balance. A 4 axle configuration is more common when transporting 80 ton to 100 ton cargo, particularly where heavier machinery, stricter road regulations, or improved axle load distribution are required.
The final deck height depends on trailer design and intended cargo application. A conventional 40 feet low bed trailer is typically built with a deck height around 800mm-1200mm, while specialized step low bed trailer configurations can be manufactured with lower deck heights from 300mm to 400mm for equipment requiring reduced overall transport height.
Spring ramps, mechanical ramps, and hydraulic ramps are all common options depending on loading frequency and equipment type. Hydraulic ramps are generally specified for repeated heavy equipment loading, while spring and mechanical ramps remain widely used for standard construction machinery transport applications.
With a source factory where semi trailers can be custom-built, and with years of experience in production, choose us to maximize your benefits.
