100 ton low bed trailer is ideal for hauling excavators, bulldozers, mining equipment, and other oversized industrial machinery.
A 100 ton low bed trailer is a heavy-duty lowbed semi trailer specialized for machinery and oversized cargo in 100-ton class. In contrast to a regular lowbed trailer for medium equipment, it needs a reinforced load-bearing structure, stronger axle distribution, a heavier-duty platform as well as ramps designed for concentrated crawler loads.
The low deck level contributes to the overall reduction of the transport height; however, the main difference is in the design.
A 100-ton version should be capable of withstanding high point loads arising from, for example, excavator tracks, bulldozer undercarriages, mining machines, or transformers, without the frame bending to a great extent. Thus, the main beam, cross members, axle group, tire specification, suspension and ramp reinforcement should be properly aligned with the actual machine weight, track position and center of gravity prior to manufacturing.
4 line 8 axle Low Bed Trailer
60 Tons Semi Lowbed Trailer
40 Feet Low Bed Trailer For Sale
80 Ton Low Bed Trailer For Sale
The specifications below are intended for a 100-ton class lowbed trailer configuration. Final dimensions and layout should be verified with a technical drawing before production, based on your machine weight, track width, tractor fifth-wheel height and applicable axle-load requirements.
| Specification | 100T Recommended Configuration |
|---|---|
| Product Name | 100 Ton Low Bed Trailer |
| Trailer Type | Heavy-duty lowbed semi trailer |
| Rated Payload | Up to 100 tons |
| Axle Layout | 4 axles standard, 5 axles optional |
| Axle Brand | LINKAR standard, other brands optional |
| Axle Capacity | 13T axle configuration available |
| Brake Lining | 16T brake lining available |

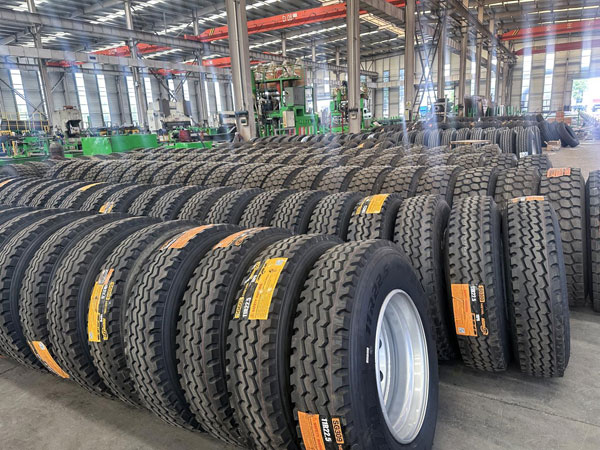

| Tires | 12R22.5, 16 pcs |

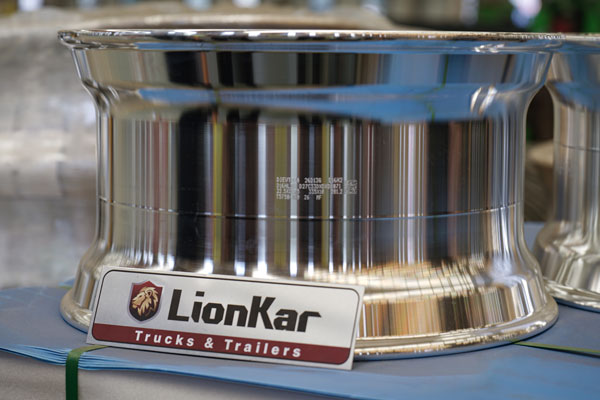

| Rim | 9.00-22.5 |
| Suspension | Mechanical suspension standard |
| Main Beam Height | 500 mm |
| Upper Plate | 20 mm |
| Platform Plate | 5 mm checkered plate |
| Overall Dimension | Around 13,000–19,000 × 2,500–3,000 × 1,700 mm |
| Ramp | Spring ramp standard, hydraulic ramp optional |

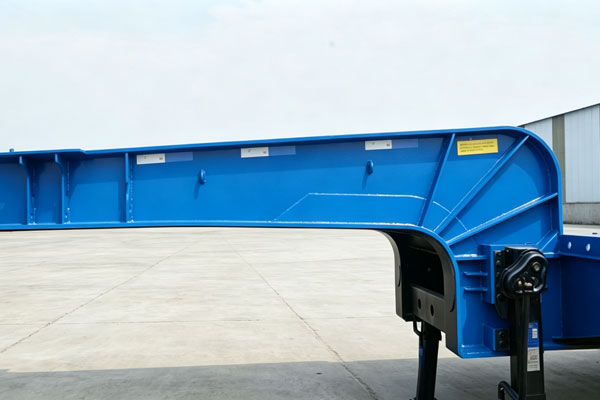

| Gooseneck | Fixed gooseneck standard, detachable gooseneck optional |
| Landing Gear | 28T landing legs |

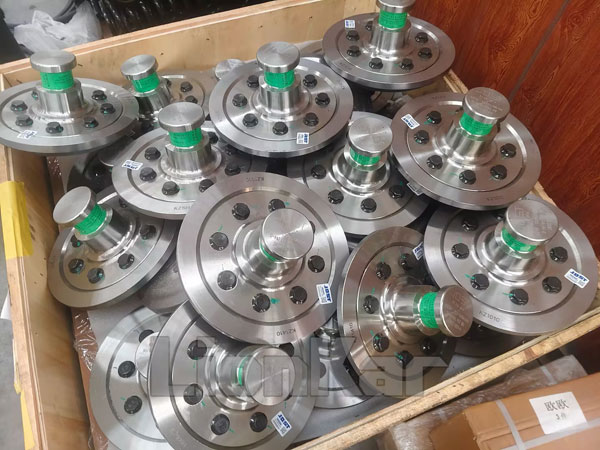

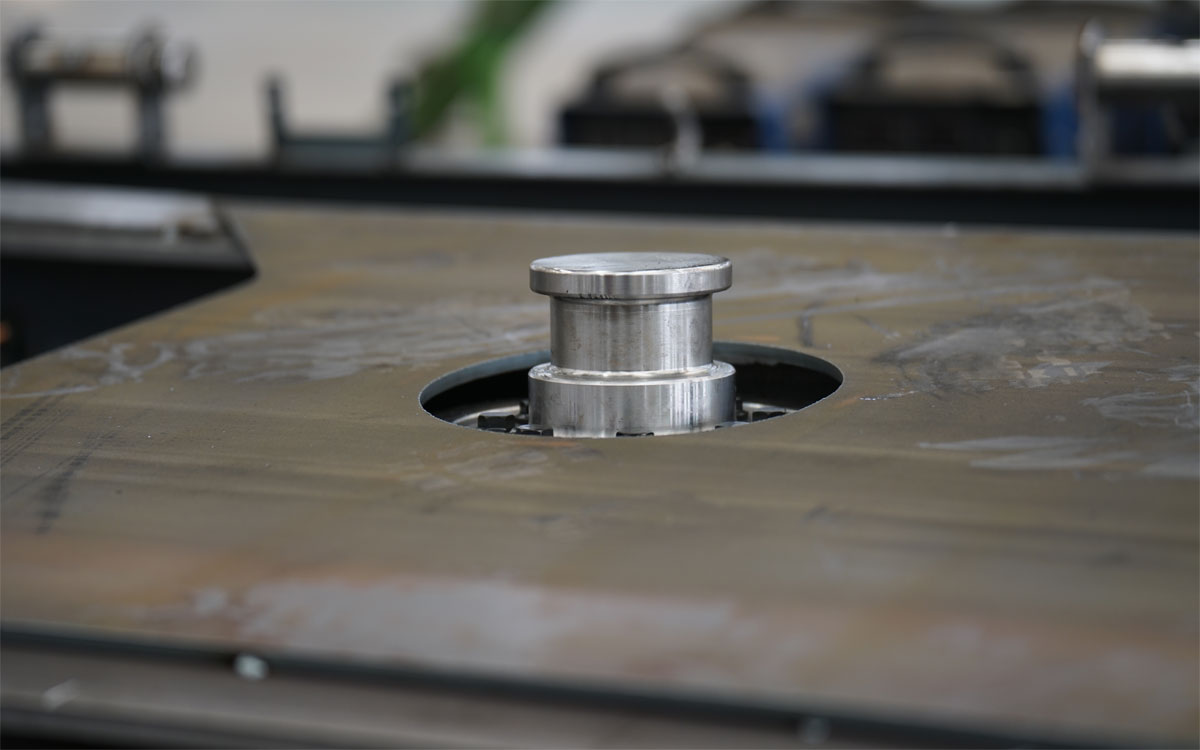

| King Pin | #90 bolted type, 2-inch or 3.5-inch optional |
| Brake System | Dual-line air brake system with emergency relay valve |
| Brake Valve | WABCO available if required |
| ABS | Optional |
| Electrical System | 24V, 7-way receptacle, 7-wire harness |
| Lights | Tail lamp, turn signal, brake light, reflector, side lamp |
| Cable | One set 6-core standard cable |
| Color | Optional |
| Export Protection | Anti-rust treatment, tarpaulin cover and parts fixing before shipment |
Engineering Note: For 100-ton machinery, do not rely on a generic trailer size. Send us your machine weight, dimensions, track width, ground clearance and loading method. We will use these details to confirm the deck, ramps, axle group and kingpin height before the trailer goes into production.
View the following actual product videos to understand the 100 ton low bed trailer frame, deck reinforcement, axle set, ramp arrangement and the heavy-duty build before you ask for the final price.
When you buy a 100 ton low bed trailer, the main risk is not choosing a trailer that is too short. The real risk is choosing a frame, axle group or ramp design that cannot handle the way your machine actually loads the deck.
A 100-ton class trailer needs more frame strength than a 60T or 80T lowbed. The NW450 main beam, 500 mm beam height and 20 mm upper and lower plates are selected to support heavy crawler machines and industrial equipment. This matters when the load is concentrated over a small footprint, such as the track area of an excavator or bulldozer.

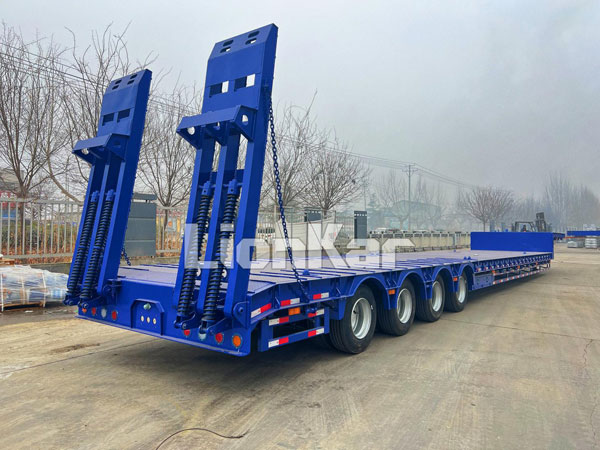

A 4-axle layout is the standard recommendation for this 100 ton low bed trailer because it provides 16 tires and better support than a lighter 3-axle layout. When the cargo weight is close to the upper limit or the project requires lower axle pressure, a 5-axle option can be quoted. This gives you a trailer configuration based on actual load distribution, not just a product name.
For 100T-class equipment, the ramp is not a minor accessory. It takes the first loading impact when crawler machinery climbs onto the deck. Spring ramps are strong and simple. Hydraulic ramps are better for frequent loading and easier operation. Ramp width, reinforcement and angle should be matched to your machine track width.
The heavy-duty lowbed deck is suitable for most 100-ton class machinery, including excavators, bulldozers and mining equipment. For special machines with extra width, extended length, low ground clearance or unusual loading points, the platform width, deck length, ramp layout and loading angle can be adjusted before production.
A 100T lowbed trailer must handle high load concentration, not just a large payload rating. These structural details are selected for heavy machinery where crawler tracks, machine frames and static point loads place heavy stress on the trailer.
The 500 mm main beam gives the chassis stronger vertical support for heavy machinery loads.
The 20 mm plates help the beam resist bending under concentrated crawler equipment weight.

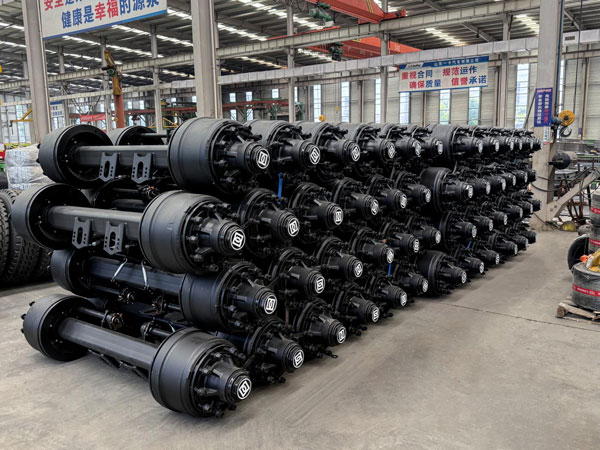

Four axles and 16 tires help distribute 100-ton class loads across more contact points.
The reinforced platform surface is better suited for crawler equipment than light-duty deck plates.
Mechanical suspension offers strong load support and easier maintenance for heavy-duty operation.

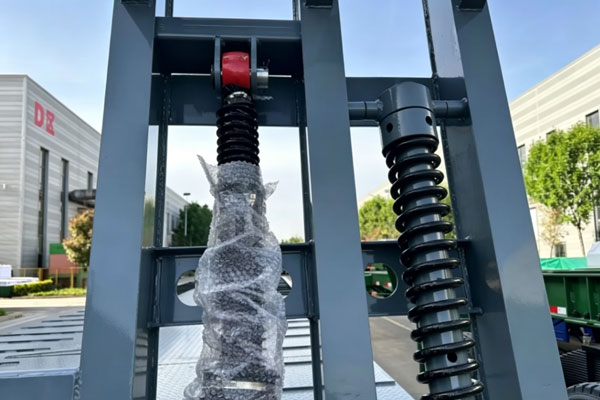

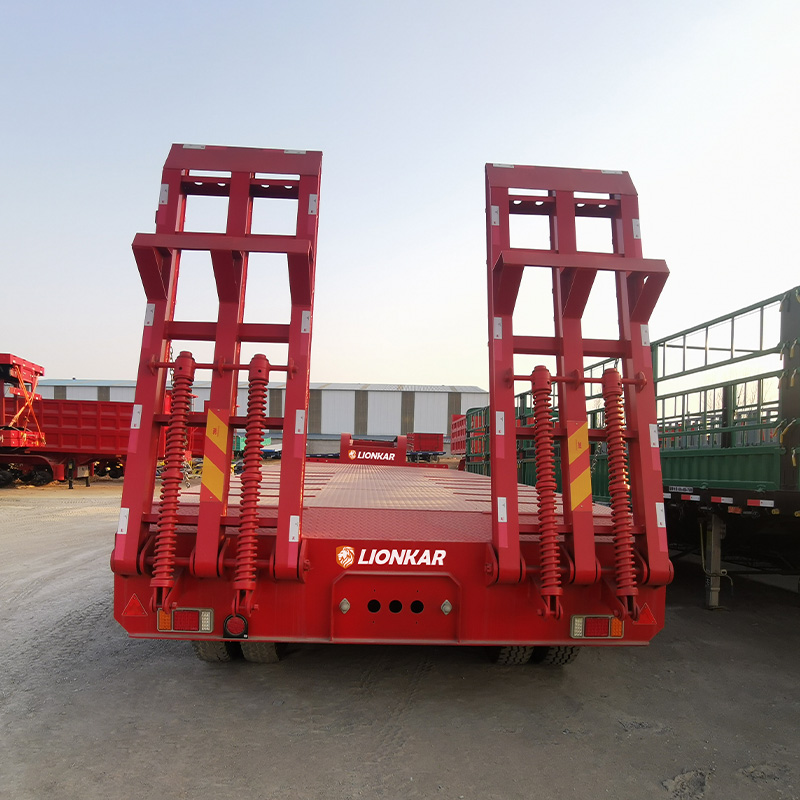

Spring ramps suit simple heavy loading. Hydraulic ramps suit frequent loading of tracked machines.
Before quotation, you can send equipment dimensions, machine weight, destination market and tractor information. We will recommend a 100 ton low bed trailer configuration based on your actual load.

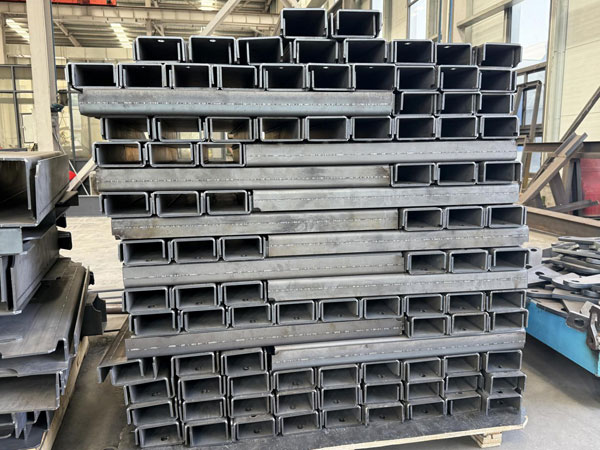

Factory photos can show main beam fabrication, welding, platform assembly, ramp production, suspension installation, painting and final inspection.
This trailer is intended for cargo that is too heavy for ordinary lowbed configurations. It is used when equipment weight approaches the 100-ton class or when concentrated machine loads require a stronger chassis and axle group.
Heavy-duty excavators and dozers exert a very high load through their tracks on a limited deck surface. Reinforcement of the platform, use of the NW450 main beam and a 4-axle layout are some of the features that will help to support crawler equipment during loading, parking and road movement.
Usually, mining equipment is small in size but very heavy in terms of machine weight. A 100 ton low bed trailer fits with crushers, drilling units and other heavy site machinery that need low deck height plus concentrated-load support.
Transformers and industrial modules require stable support and controlled cargo height. The lowbed structure helps keep the load lower, while the reinforced chassis supports heavy static loads during transport.
Large fabricated steel components require deck length, platform width and tie-down planning. The trailer can be configured with the right platform dimensions to support long or wide structural cargo.
Send the machine model, operating weight, track width and loading method. We will match the trailer configuration to your actual cargo.
Customer feedback helps you understand how fleet operators, transport companies, and trailer buyers evaluate the trailer’s build quality, loading performance, and overall reliability.
Customers visiting our factory for 100 ton low bed trailer projects can inspect production processes, check trailer quality, and discuss technical specifications with our engineering team. These visits help buyers evaluate manufacturing capability and confirm the right trailer configuration before placing an order.

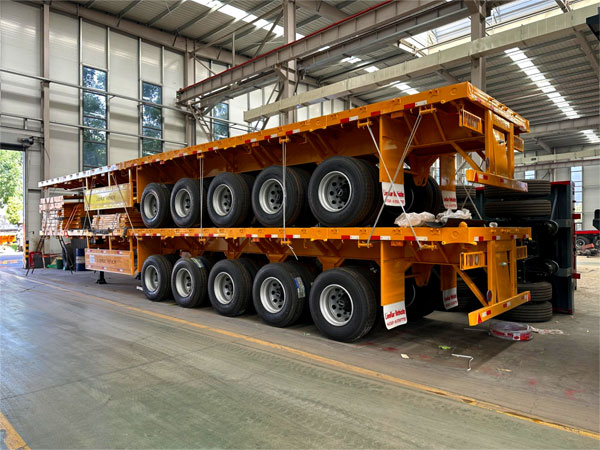

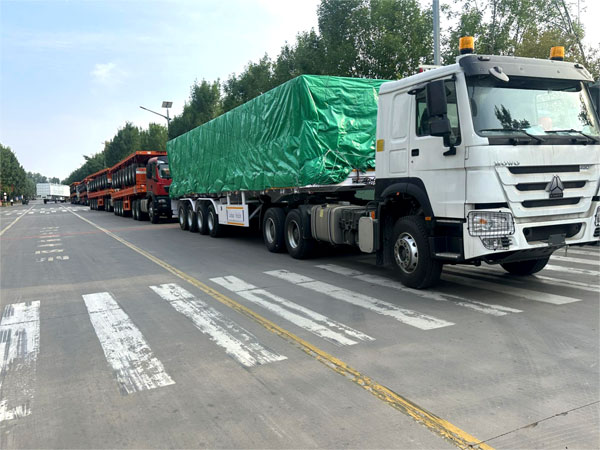

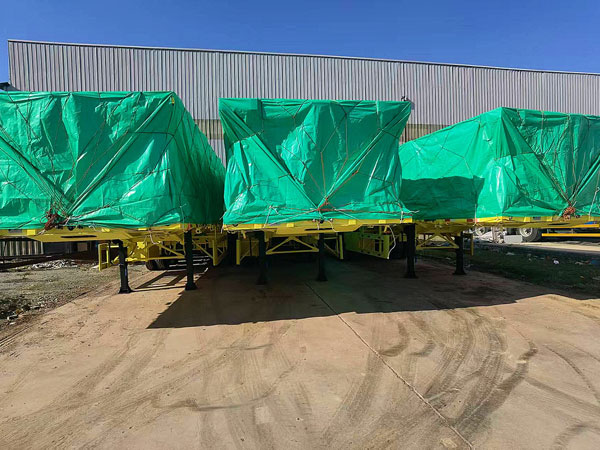

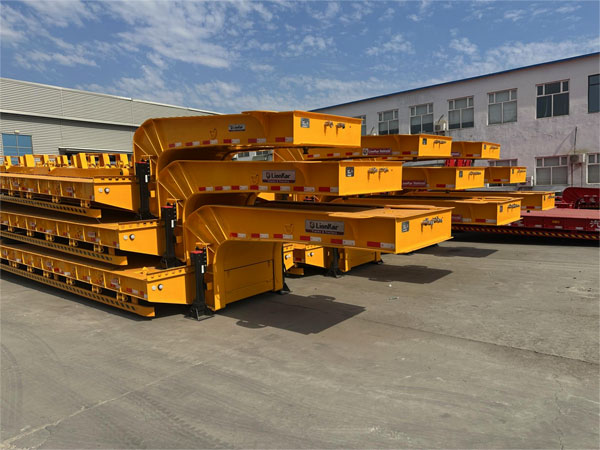

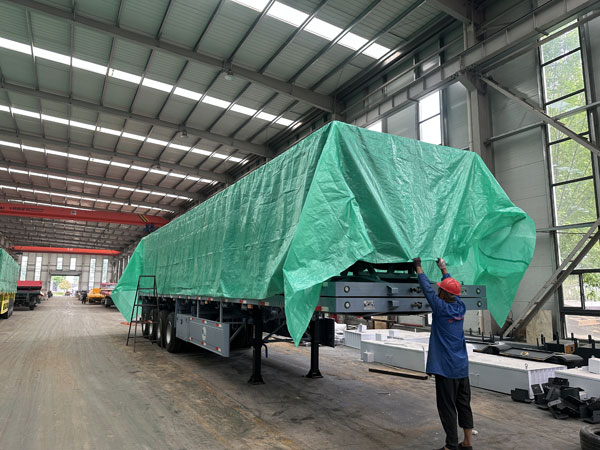

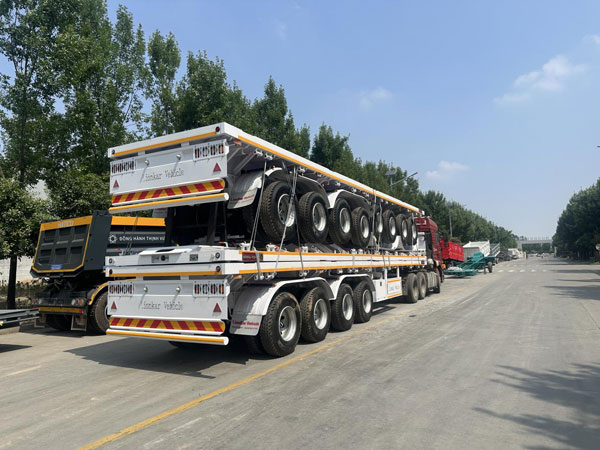

Every 100 ton low bed trailer is thoroughly inspected and prepared before shipment. From final quality inspection and surface protection to export packaging and loading preparation, each trailer is handled carefully to ensure safe international delivery.
We have listed some questions, which focus on real 100-ton trailer purchase decisions.
Normally 4-axle layout is a configuration often used for 100 ton low bed trailer. However, you must check it considering cargo weight, axle-load requirements, and tractor setup. When the load approaches the maximum limit or the weight is very concentrated, a 5-axle version can be proposed.
Kindly provide the machine weight, length, width, height, track width, ground clearance, method of loading, and the target market. These factors influence deck length, ramp strength, axle position, kingpin height, and the final drawing for a 100T trailer.
If you want a simple, strong, and less costly loading structure then choose spring ramps. On the other hand, if you load heavy tracked machinery frequently and want easier operation then go for hydraulic ramps. For 100T-class equipments, ramp width and reinforcement must be made compatible with the machine track.
The final price of a 100 ton low bed trailer varies depending on technical configuration and customer requirements. Final quotation is based on confirmed specifications and engineering drawings.
Yes, every low bed trailer can be customized to meet specific transport requirements. Factors such as payload capacity, equipment dimensions, axle configuration, suspension type, tire specifications, ramp design, ABS braking system, gooseneck structure, and color can all be confirmed before production.
